New Manitowoc MLC300 & 999 In Stock & Available

Two New Manitowoc Crawler Cranes In-Stock and Immediately Available:
Manitowoc 999 (275 Ton) & Manitowoc MLC300 (330 Ton)

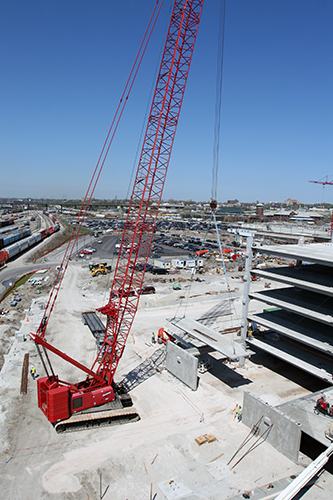

One (1) New 2016 Manitowoc 999, S/N: 999-1383, 275 Ton Lattice Boom Crawler Crane, Equipped As Shown Below:

- 220’ of #82 Boom Including 70’ Main Boom, Consisting of 30’ Boom Butt & 40’ Top, (1) 10’ Insert, (1) 20’ Insert & (3) 40’ Inserts
- Cummins QSL9 Tier 4f Diesel Engine
- Detachable Upper Boom Point
- Two Equal Width Hoists Grooved for 26 mm Wire Rope
- 26 mm Diameter Hoist Rope (1,625’ Main/1,010’ Whip)
- Independent Boom Hoist
- Series 2 & 3 Counterweight (219,600 lbs. Upper/80,000 lbs. Carbody)
- Fully Enclosed Steel Galvannealed Operator’s Cab
- Operator’s Cab Pivots for Transportation
- Air Conditioning in Operator’s Cab
- Protective Nylon Window Covers
- Swing & Travel Alarms
- Rated Capacity Limiter (RCL) System
- Epic Control System
- Luffing Jib Preparation
- Auxiliary Drum Preparation
- Self Erect System w/ Carbody Jacking Cylinders
- Independent Swing System
- 360 Degree Positive Swing Lock
- Auto Lube for Turntable Bearing
- Crawler Assemblies w/ Auto Lubrication
- Boom Rigging Ladders (2)
- Boom Walkways
- Wind Anemometer
- 100 Ton 3-Sheave Hookblock
- 45 Ton Assembly Block
- 15 Ton Swivel Hook Ball

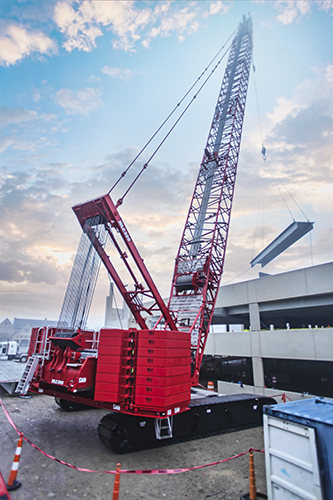

One (1) New 2016 Manitowoc MLC300, S/N: 606734, 330 Ton Lattice Boom Crawler Crane with Variable Position Counterweight (VPC), Equipped As Shown Below:

- 276 Ft of No. 500 Boom
- Detachable Upper Boom Point
- Main Hoist (Drum 1) and Aux Hoist (Drum 6) Mounted in Boom Butt
- 3rd Drum Prep
- Self Erect System with Carbody Jacking Cylinders
- 28 mm Diameter Hoist Rope (3,117 Ft Main, 1,444 Ft Whip)
- Luffing Jib Preparation
- VPC-MAX Preparation
- Series 3 Counterweight (468,000 Lbs Total)
- Rigging Winch
- Boom Rigging Ladders
- Boom Walkways
- Vision Cab with Power Tilt
- Protective Nylon Window Covers
- Operator’s Station Pivots for Transportation
- Air Conditioning in Operator’s Cab
- Crane Control System (CCS) with 2 Full Graphic Displays
- RCL System
- Camera System For Viewing Hoist Drums
- Automatically Lubricated Intermediate Rollers
- Four (4) Crawler Mounted Access Steps
- Cummins QSG12 Tier 4f 450 HP Diesel Engine
- Auto-Lube for Turntable Bearing
- Anemometer
- Auxiliary Power Unit Capable of Powering Cab System Electrical, Cab Heat, Air Conditioning and Cold Weather Package While Main Diesel Engine is Shut Down
- Cold Weather Package
- Crane Star Asset Management System
- 275 Ton 7 Sheave Hookblock, Weight: 7,187 Lbs
- 110 Ton 3 Sheave Hookblock, Weight: 4,663 Lbs
- 45 Ton Single Sheave Hookblock, Weight: 2,600 Lbs
- 15 Ton Swivel Hook & Weight Ball









Contact Shawmut's Sales Department for more information at 800-643-4161
